| FHF P1 - Weatherproof Emergency Telephone Pillar |
FHF P1
Weatherproof telephone pillar for use as an Info or Emergency Telephone ideal for Indoor and outdoors (IP65) applications. Bright yellow weatherproof housing with options of keypad with 3 speed dialling keys or without keypad (programmable speed dialling on the backside). Ideal for roadside or site insallations.
Weatherproof Phone Pillar for use as an Information or Emergency Telephone
Application: Indoors and outdoors (IP65)
Housing: Plastic (yellow)
P1 Versions Available
With Keypad: 3 speed dialling keys
Without Keypad: Programmable speed dialling on the backside |
|
| Specifications |
| Housing material |
Polycarbonate |
| Colour housing |
Yellow |
| Dimension Height |
1605 |
| Dimension Width |
130 |
| Dimension Deep |
135 |
| Temperature range |
-25 up to +60 |
Degree of protection
(IP) |
IP65 |
| Handset colour |
Black |
| Connection network |
Analogue |
| Handset cord |
Steel cord |
|

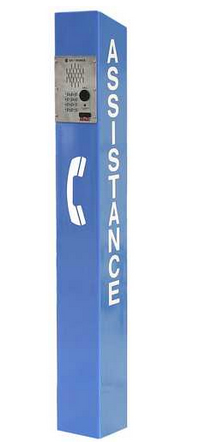

| GAI-Tronics’ 234FSP RED ALERT Pedestal |
GAI-Tronics’ 234FSP RED ALERT Pedestal is part of a completely integrated emergency communications station. Designed for use where height is truly a factor, the FS series unit provides solutions to security concerns for Parking Garages, Building Entrances, Parking Lots, Transit Platforms, Shopping Malls, Gate Entry, Walkpaths
|
- Standard colors of Architectural Bronze, Safety Blue, and Safety Red are Pleasing in all Settings
- UL 1598 Listed for Outdoor Installations
- Supports RED ALERT ‘FS’ Series Compact Telephones
- Durable Powder-coated Epoxy Finish to Withstand the Most Harsh Environments
- ADA Compliant Telephone Mounting Height
- Custom Colors and Graphics Available
- 56 Inches Tall (at front)
- 7-in. x 7-in. Foot print
- Wind Speed Rated at 160 MPH*
Model 234FSP Specifications
| Compatibility |
GAI-Tronics Telephones Are Sold Separately. Model 234FSP Pedestal is not compatible with standard RED ALERT® surface-mount or retrofit telephones. |
| FInish Type |
Powder-coated Epoxy |
| Material |
Steel |
| Dimensions |
7" x 56" x 7" (D x H x W) |
| Certification |
UL/cUL |
|
|

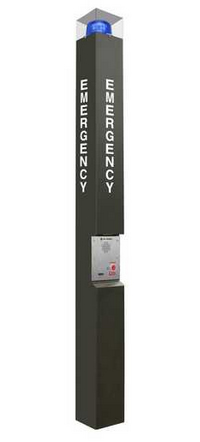

| Gai-Tronics 234 RED ALERT Tower |
The Model 234 RED ALERT® Tower is part of a completely integrated emergency communications station. Designed for remote or high-risk areas, the tower provides security/safety two-way communications for college campuses, parking garages, sports arenas, transit platforms and shopping malls.
|
- Architectural Bronze and Safety Blue Standard Colors are Pleasing in all Settings
- UL 1598 Listed for Outdoor Installations
- ADA Compliant
- Durable Powder-coated Epoxy Finish to Withstand the Harshest Environments
- Custom Colors and Graphics are Available
- Wind Speed Rated @ 140 MPH* (*Reference AASHTO LTS6 Risk Category II; International Building Code)
Model 234 Specifications
| Compatibility |
GAI-Tronics Telephones and Strobes Are Sold Separately. Model 234 Tower is not compatible with RED ALERT® surface-mount or retrofit telephones. |
| FInish ype |
Powder-coated Epoxy |
| Material |
3/16" Steel |
| Weather Rating |
UL/cUL listed Outdoor Telephone Tower |
| Dimensions |
10" x 114" x 10" (D x H x W) |
| Certification |
UL/cUL |
|
|

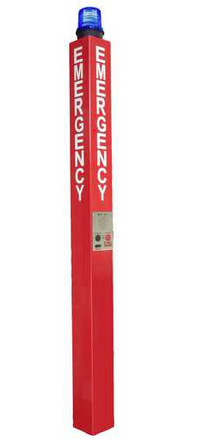

| Gai-Tronics RED ALERT® Compact Tower - Model 234FS |
The 234FS RED ALERT® Compact Toweris a part of a completely integrated emergency communications station and is designed for use where a smaller tower presence is desirable. This tower accommodates FS Series Compact Telephones
|
- Standard Colors of Architectural Bronze, Safety Blue, and Safety Red are Pleasing in all Settings
- UL 1598 Listed for Outdoor Installations
- Supports RED ALERT ‘FS’ Series Compact Telephones
- Durable Powder-coated Epoxy Finish to Withstand the Most Harsh Environments
- ADA Compliant Telephone Mounting Height
- Custom Colors and Graphics Available
- 7-ft. Tall with Strobe
- 7-in. x 7-in. Foot-print
- Wind Speed Rated at 160 MPH*
Model 234FS Specifications
| Compatibility |
GAI-Tronics Telephones and Strobes Are Sold Separately. Model 234FS Compact Tower is not compatible with standard RED ALERT® surface-mount or retrofit telephones. |
| Material |
Steel |
| Dimensions |
7" x 77" x 7" (D x H x W) |
| Certification |
UL/cUL |
|
|

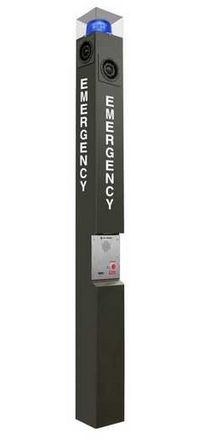

| RED ALERT® Tower Broadcast Assembly - Model 234SBA |
The 234SBA Tower Broadcast Assembly stands over 9-feet tall and provides high-quality, extremely intelligible voice and tone Public Address.
|
- 360° Coverage at 110 dB SPL @ 1 meter (4-speaker installation)
- Cost-Saving Variable Speaker Configurations (1, 2, 3, or 4) to Meet Minimum Coverage Requirements
- 108” H (114” H with strobe lens), 3/16-inch Steel with Architectural Bronze Powder Epoxy Finish
- ADA Compliant
- Weatherproof Design
- Houses GAI-Tronics’ RED ALERT® Emergency Telephone, VoIP Emergency Telephone, or RF Call Box Products (purchased separately)
- Broadcast Audio Access via 600 Ohm or Radio (VHF or UHF) Input
- Addressable via DTMF (Telephone or RF application) or 2-Tone (RF application)
- Remote Volume Control via DTMF
- Programmable Output Control for Strobe Activation During Alarm
- Back-Up Battery Included (2.8 Ah) for 1 Hour Back-Up at Full Output (built-in trickle charge circuit)
- Custom Colors and Graphics Available
- PC Programmable
Model 234FSP Specifications
| Compatibility |
GAI-Tronics Telephones and Strobes Are Sold Separately. Model 234SBA Tower is not compatible with RED ALERT® surface-mount or retrofit phones. |
| Temperature |
-4°F to + 140°F |
| Material |
3/16" Steel |
| Dimensions |
10" x 114" x 10" (D x H x W) |
|
Typical Installations
- College / School Campuses
- Communities (Public Safety)
- Transit Platforms
- Amusement Parks
- Parking Areas
- Two-way Communication Public Address
- One-way Communications Public Address
|
|
