Gai-Tronics PHP400 - Help Point Telephone

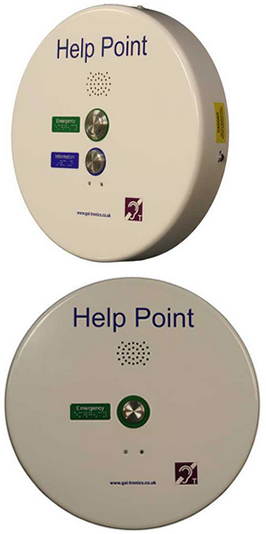

The PHP400 Help Point is a rugged, public access hands- free telephone housed in a white enclosure. The units are compact (400mm diameter, 88mm deep) and have the same fixing requirements as other GAI-Tronics telephones. The Help Point telephones are vandal and weather resistant, providing hands-free loudspeaking communications for any public area. The design of the unit takes into consideration the requirements of The Equality Act 2010 (EA).
SMART Analogue, GSM and VoIP-SIP options Large, vandal resistant metal buttons, palm operable Raised text button legends with Braille Integral Induction Loop facility for hearing impaired 2 x RJ45 Connectors as option for VoIP* Audio-visual ring indication, Emergency override Hands-free operation Local PA Robust and weather resistant: IP55 1 or 2 button autodial options with remote programming Suitable for pole mounting to a single PSTN post or surface mounting, simple installation 400mm diameter NETWORK RAIL approved Connectivity options are: SMART Analogue The standard analogue unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including FXS ports, analogue PABX lines and PSTN. Self Monitoring And Reporting Telephone can be integrated with GAI-Tronics’ TMA monitoring and maintenance software. SMART gives advanced features including remote programming, fault monitoring and call logging, all from a line-powered telephone capable of operating up to 7km from the exchange on a two-wire cable. Voice over IP (SIP protocol) GAI-Tronics VoIP-SIP telephones support Power over Ethernet (PoE) to combine power and connection to LAN or WAN. GAI-Tronics telephones now feature a secondary RJ45 port option which allows two or more telephones to be connected in series². GAI-Tronics VoIP-SIP phones offer a wealth of additional features including real-time reporting via Syslog, and can be configured by web browser. GSM GSM option allows wireless connectivity with SIM card, more details on reques.
	Dual button Buttons labelled “Information“ and “Emergency”. Each button can be programmed with a number up to 24 digits. Pressing the Emergency button will override an information call. Single button Can be configured to dial a stored number or as a ‘hotline’, where the exchange routes the call.
